SPITWATER

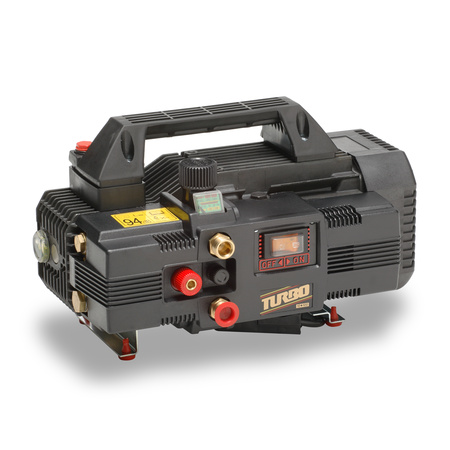

TURBO Quiky 10-100
Cold Water, 1450 PSI, LD, 2.8kW Electric, 240V
Key Benefits
- Interpump Product: Compact design, tried and proven for reliability.
- Durable Piston Pump: Provides longer life with reduced maintenance.
- In-line Filter: Protects pistons and seals from scoring, ensuring smooth operation.
- Electric Motor: Easy connectivity with a 240 V, 10 A plug.
- Wire-Braided Hose: Tough and reliable 1/4 inch hose for extended service life.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The TURBO Quiky 10-100 offers 100 Bar pressure and 10 LPM flow, designed for general maintenance and light commercial cleaning tasks.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Hobby |
| Features | Duty Cycle | Light |
| Features | Temperature | Cold |
| Features | Nozzle Size | 45 |
| Performance | Pressure (Bar) | 100 |
| Performance | Pressure (MPa) | 10 |
| Performance | Pressure (PSI) | 1450 |
| Performance | Certifications | CE Certified |
| Performance | Class | Class A |
| Performance | Country of Origin | Italy |
| Performance | Flow (L/Min) | 10 |
| Water Inlet | Maximum Temperature (°C) | 60 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Power (hp) | 2.5 |
| Motor / Engine | Speed (rpm) | 2800 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Oil Capacity (L) | 0.33 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | KR100 |
| Electrical | Plug (A) | 10 |
| Electrical | Phases | 1 |
| Electrical | Voltage | 230 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Rated Current (A) | 12 |
| Electrical | Connected Load (kW) | 2.8 |
| Electrical | IP Rating | IPX5 |
| Electrical | Sound Power Level (dBA) | 80 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 93 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 23.57 |
| Dimensions & Weight | Packed Height (mm) | 315 |
| Dimensions & Weight | Packed Length (mm) | 430 |
| Dimensions & Weight | Packed Weight (kg) | 28 |
| Dimensions & Weight | Packed Width (mm) | 305 |
| Dimensions & Weight | Unpacked Height (mm) | 235 |
| Dimensions & Weight | Unpacked Length (mm) | 405 |
| Dimensions & Weight | Unpacked Weight (kg) | 23.5 |
| Dimensions & Weight | Unpacked Width (mm) | 240 |
