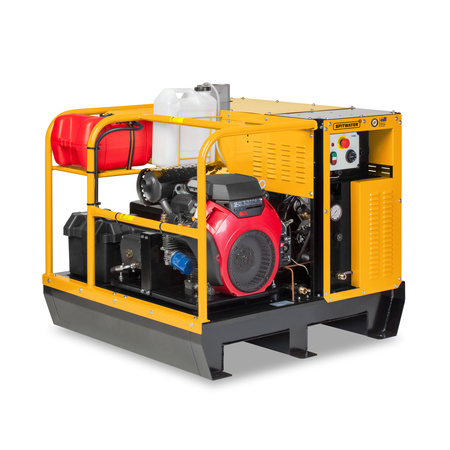

SPITWATER
SW21-200SPE
Hot Water, Belt Drive, 21LPM, 2900 PSI, Skid, GX630 Honda Petrol w E-Stop, SS Coil
Key Benefits
- Fully Portable: Operates anywhere with water and fuel, perfect for remote locations.
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- 'Oz-Tuff' Belt Drive: Efficient, reliable, and maintenance-free power transmission.
- Stainless Steel Coil: Provides longer heating coil life and superior corrosion resistance.
- E-Stop & Battery Isolator: Built-in safety features for enhanced operator protection.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The SW21-200SPE provides 200 Bar pressure and 21 LPM flow, designed for large contract and industrial cleaning tasks.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Hot |
| Features | Drive Type | Belt Drive |
| Features | Nozzle Size | 65 |
| Performance | Pressure (Bar) | 200 |
| Performance | Pressure (MPa) | 20 |
| Performance | Pressure (PSI) | 2900 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 21 |
| Water Inlet | Maximum Pressure (MPa) | 0.6 |
| Water Inlet | Minimum Flow (L/min) | 23 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Petrol |
| Motor / Engine | Motor / Engine Brand | Honda |
| Motor / Engine | Motor / Engine Model | Honda GX630 |
| Motor / Engine | Power (hp) | 20 |
| Motor / Engine | Speed (rpm) | 3570 |
| Motor / Engine | Fuel Capacity (L) | 36 |
| Motor / Engine | Fuel Consumption (L/h) | 6 |
| Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.7 |
| Motor / Engine | Motor / Engine - Oil Type | 10W-30 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | WS202 |
| Pump | Pump Oil Capacity (L) | 1.1 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | K5 |
| Electrical | Voltage | 12 |
| Electrical | Sound Power Level (dBA) | 103 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 95 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 67.6 |
| Dimensions & Weight | Packed Height (mm) | 1235 |
| Dimensions & Weight | Packed Length (mm) | 1190 |
| Dimensions & Weight | Packed Weight (kg) | 404 |
| Dimensions & Weight | Packed Width (mm) | 1190 |
| Dimensions & Weight | Unpacked Height (mm) | 1015 |
| Dimensions & Weight | Unpacked Length (mm) | 1120 |
| Dimensions & Weight | Unpacked Weight (kg) | 360 |
| Dimensions & Weight | Unpacked Width (mm) | 1120 |
