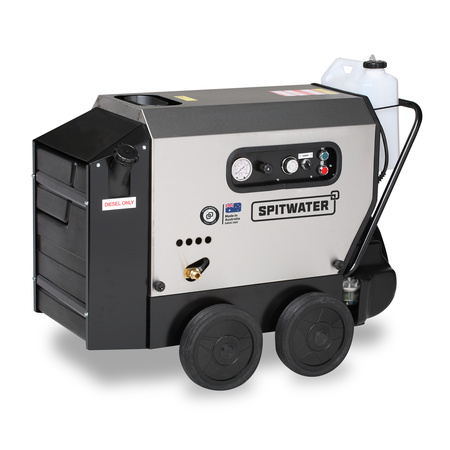

SPITWATER
SW201
Hot Water, Direct Drive, 15LPM, 2900 PSI, 7.5HP Electric, 20A, 415V
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Cooling Tank: Prevents pump overheating, extending its lifespan.
- Diesel Burner: Provides instant hot water for enhanced cleaning efficiency.
- In-line Filter: Protects pistons and seals from scoring, ensuring durability.
- Thermostat Control: Allows precise temperature adjustment for versatile applications.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The SW201 offers 200 Bar pressure and 15 LPM flow, perfect for transport, earth-moving, and large business cleaning tasks.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Hot |
| Features | Drive Type | Direct Drive |
| Features | Nozzle Size | 45 |
| Performance | Pressure (Bar) | 200 |
| Performance | Pressure (MPa) | 20 |
| Performance | Pressure (PSI) | 2900 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 15 |
| Water Inlet | Maximum Pressure (MPa) | 1 |
| Water Inlet | Minimum Flow (L/min) | 17 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Motor / Engine Brand | Soga |
| Motor / Engine | Power (hp) | 7.5 |
| Motor / Engine | Speed (rpm) | 1450 |
| Motor / Engine | Fuel Capacity (L) | 24 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | WS201 |
| Pump | Pump Oil Capacity (L) | 1.1 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | K5 |
| Electrical | Plug (A) | 20 |
| Electrical | Phases | 3 |
| Electrical | Voltage | 400 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Rated Current (A) | 12.5 |
| Electrical | Connected Load (kW) | 7.4 |
| Electrical | IP Rating | IPX4 |
| Electrical | Sound Power Level (dBA) | 91 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 83 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 48.3 |
| Dimensions & Weight | Packed Height (mm) | 880 |
| Dimensions & Weight | Packed Length (mm) | 1130 |
| Dimensions & Weight | Packed Weight (kg) | 199 |
| Dimensions & Weight | Packed Width (mm) | 660 |
| Dimensions & Weight | Unpacked Height (mm) | 820 |
| Dimensions & Weight | Unpacked Length (mm) | 1117 |
| Dimensions & Weight | Unpacked Weight (kg) | 171 |
| Dimensions & Weight | Unpacked Width (mm) | 604 |
