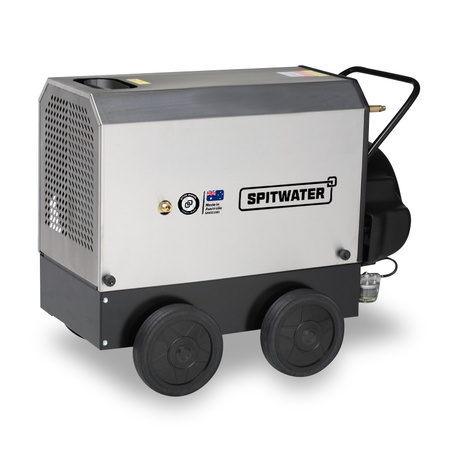

SPITWATER
SHW11/12V
Heating Cylinder, Direct Drive, Max 2900 PSI, 0.1kW Electric, 12V
Key Benefits
- Diesel Burner: Delivers instant hot water for efficient cleaning.
- High Performance: Handles up to 90°C, 250 bar (3626 psi), and 21 L/min flow.
- Portable Operation: Requires only 240V, 10 Amp power or a small generator.
- Durable Coil Design: Horizontal steel coil ensures better heating and extended life.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The SHW11/12V provides instant hot water for cleaning, heating water to 90°C with a 12 V power supply.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Hot |
| Performance | Pressure (Bar) | Max 200 |
| Performance | Pressure (MPa) | Max 25 |
| Performance | Pressure (PSI) | Max 2900 |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | Max 21 |
| Water Inlet | Maximum Pressure (MPa) | 2 |
| Water Inlet | Minimum Flow (L/min) | 15 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Fuel Capacity (L) | 36 |
| Electrical | Voltage | 12 |
| Electrical | Rated Current (A) | 10 |
| Electrical | Connected Load (kW) | 0.1 |
| Electrical | IP Rating | IPX4 |
| Electrical | Sound Power Level (dBA) | 78 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 70 |
| Dimensions & Weight | Packed Height (mm) | 880 |
| Dimensions & Weight | Packed Length (mm) | 1130 |
| Dimensions & Weight | Packed Weight (kg) | 140 |
| Dimensions & Weight | Packed Width (mm) | 660 |
| Dimensions & Weight | Unpacked Height (mm) | 820 |
| Dimensions & Weight | Unpacked Length (mm) | 1045 |
| Dimensions & Weight | Unpacked Weight (kg) | 117 |
| Dimensions & Weight | Unpacked Width (mm) | 604 |
