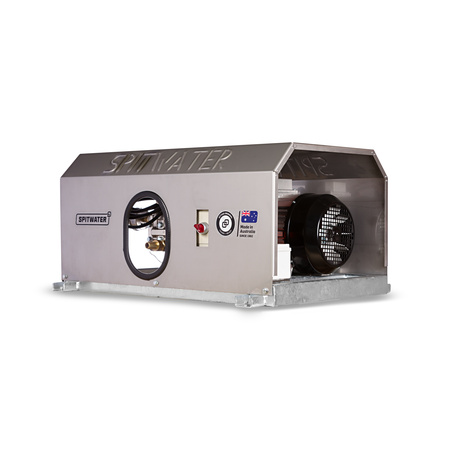

SPITWATER
HT11-110E GT
High Temp Cold Water, Direct Drive, 11LPM, 1600 PSI, Wall/Base Mounted, SS Cover, 3HP Electric, 15A, 240V
Key Benefits
- High-Temperature Capability: Accepts water up to 80⁰C for superior cleaning performance.
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- In-line Filter: Protects pistons and seals from scoring, enhancing durability.
- Stainless Steel Frame & Cover: Provides corrosion resistance for longevity.
- Australian Made: High-quality product designed for industrial performance.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HT11-110E GT provides 110 Bar pressure and 11 LPM flow, designed for hot water industrial cleaning in food production and workshop maintenance.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Direct Drive |
| Features | Nozzle Size | 40 |
| Performance | Pressure (Bar) | 110 |
| Performance | Pressure (MPa) | 11 |
| Performance | Pressure (PSI) | 1600 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 11 |
| Water Inlet | Maximum Pressure (MPa) | 0.8 |
| Water Inlet | Minimum Flow (L/min) | 13 |
| Water Inlet | Maximum Temperature (°C) | 85 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Motor / Engine Brand | Soga |
| Motor / Engine | Power (hp) | 3 |
| Motor / Engine | Speed (rpm) | 1400 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | VHT6311 |
| Pump | Pump Oil Capacity (L) | 0.36 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | SETMATIC 0 |
| Electrical | Plug (A) | 15 |
| Electrical | Phases | 1 |
| Electrical | Voltage | 230 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Rated Current (A) | 14 |
| Electrical | Connected Load (kW) | 3.1 |
| Electrical | IP Rating | IPX4 |
| Electrical | Sound Power Level (dBA) | 84 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 76 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 26.19 |
| Dimensions & Weight | Packed Height (mm) | 680 |
| Dimensions & Weight | Packed Length (mm) | 790 |
| Dimensions & Weight | Packed Weight (kg) | 75 |
| Dimensions & Weight | Packed Width (mm) | 660 |
| Dimensions & Weight | Unpacked Height (mm) | 384 |
| Dimensions & Weight | Unpacked Length (mm) | 750 |
| Dimensions & Weight | Unpacked Weight (kg) | 58 |
| Dimensions & Weight | Unpacked Width (mm) | 600 |
