SPITWATER

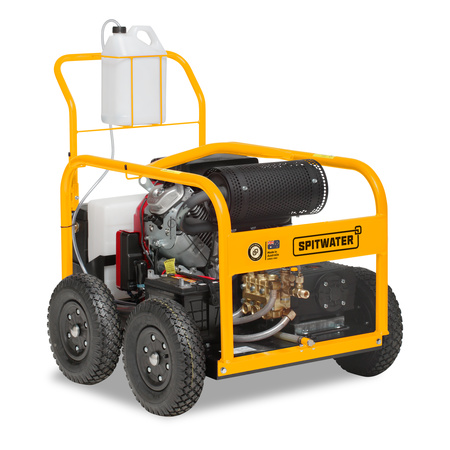

HP3523AE
Cold Water, Belt Drive, 23LPM, 5080 PSI, GX690 Honda Petrol w Electric Start
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Water Cooling Tank: Protects pump seals from overheating during bypass mode, extending pump life.
- Honda GX690 Engine: Industrial-grade, electric start engine with a 3-year warranty for reliability.
- 'Oz-Tuff' Belt Drive: Efficient and maintenance-free, consuming 15% less power than a gearbox.
- VS350 Safety Valve: Provides essential over-pressure protection for safe operation.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP3523AE delivers 350 Bar pressure and 23 LPM flow, ideal for very large equipment fleet and mining cleaning tasks.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Belt Drive |
| Features | Nozzle Size | 45 |
| Performance | Pressure (Bar) | 350 |
| Performance | Pressure (MPa) | 35 |
| Performance | Pressure (PSI) | 5080 |
| Performance | Class | Class B |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 23 |
| Water Inlet | Maximum Pressure (MPa) | 0.6 |
| Water Inlet | Minimum Flow (L/min) | 25 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Petrol |
| Motor / Engine | Motor / Engine Brand | Honda |
| Motor / Engine | Motor / Engine Model | Honda GX690 |
| Motor / Engine | Power (hp) | 24 |
| Motor / Engine | Speed (rpm) | 3600 |
| Motor / Engine | Fuel Capacity (L) | 11 |
| Motor / Engine | Fuel Consumption (L/h) | 6.3 |
| Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.7 |
| Motor / Engine | Motor / Engine - Oil Type | 10W-30 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | W3523 |
| Pump | Pump Oil Capacity (L) | 1.2 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | VB350 |
| Electrical | Sound Power Level (dBA) | 95 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 103 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 101.4 |
| Dimensions & Weight | Packed Height (mm) | 930 |
| Dimensions & Weight | Packed Length (mm) | 880 |
| Dimensions & Weight | Packed Weight (kg) | 160 |
| Dimensions & Weight | Packed Width (mm) | 770 |
| Dimensions & Weight | Unpacked Height (mm) | 953 |
| Dimensions & Weight | Unpacked Length (mm) | 992 |
| Dimensions & Weight | Unpacked Weight (kg) | 137 |
| Dimensions & Weight | Unpacked Width (mm) | 746 |
