SPITWATER

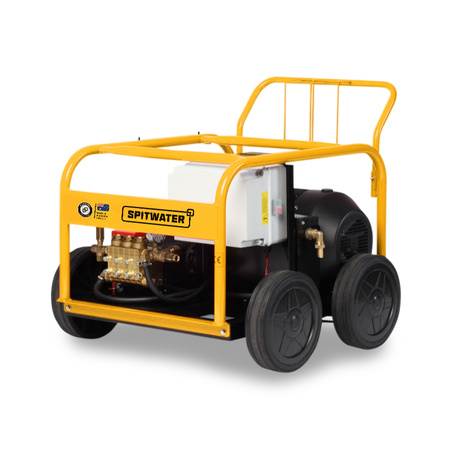

HP3523
Cold Water, Belt Drive, 23LPM, 5080 PSI, 20HP Electric, 32A, 415V
From $10,427.27
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Water Cooling Tank: Protects pump seals from overheating during bypass mode, extending pump life.
- Low-Level Water Sensor: Automatically shuts down the machine when water levels are low to protect the pump.
- Industrial 15 kW Electric Motor: Features a Star Delta starter for enhanced safety and durability.
- VS350 Safety Valve: Provides critical over-pressure protection for safe operation.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP3523 offers 350 Bar pressure and 23 LPM flow, perfect for extra heavy-duty industrial and mining applications.
Technical Specifications
Category | Description | Value |
---|---|---|
Features | Machine Type | Industrial |
Features | Duty Cycle | Heavy |
Features | Temperature | Cold |
Features | Drive Type | Belt Drive |
Features | Nozzle Size | 45 |
Performance | Pressure (Bar) | 350 |
Performance | Pressure (MPa) | 35 |
Performance | Pressure (PSI) | 5080 |
Performance | Class | Class B |
Performance | Country of Origin | Australia |
Performance | Flow (L/Min) | 23 |
Water Inlet | Maximum Pressure (MPa) | 0.6 |
Water Inlet | Minimum Flow (L/min) | 25 |
Water Inlet | Maximum Temperature (°C) | 40 |
Motor / Engine | Motor / Engine | Electric |
Motor / Engine | Power (hp) | 20 |
Motor / Engine | Speed (rpm) | 1405 |
Pump | Pump Type | Piston Pump |
Pump | Pump Brand | Interpump |
Pump | Pump Model | W3523 |
Pump | Pump Oil Capacity (L) | 1.2 |
Pump | Pump Oil Type | 15W-40 |
Bypass System | Valve Model | VB350 |
Electrical | Plug (A) | 32 |
Electrical | Phases | 3 |
Electrical | Voltage | 400 |
Electrical | Frequency (Hz) | 50 |
Electrical | Rated Current (A) | 15.7 |
Electrical | Connected Load (kW) | 15.3 |
Electrical | IP Rating | IPX5 |
Electrical | Sound Power Level (dBA) | 94 |
Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 86 |
Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 101.42 |
Dimensions & Weight | Packed Height (mm) | 860 |
Dimensions & Weight | Packed Length (mm) | 940 |
Dimensions & Weight | Packed Weight (kg) | 258 |
Dimensions & Weight | Packed Width (mm) | 900 |
Dimensions & Weight | Unpacked Height (mm) | 810 |
Dimensions & Weight | Unpacked Length (mm) | 971 |
Dimensions & Weight | Unpacked Weight (kg) | 223 |
Dimensions & Weight | Unpacked Width (mm) | 860 |
