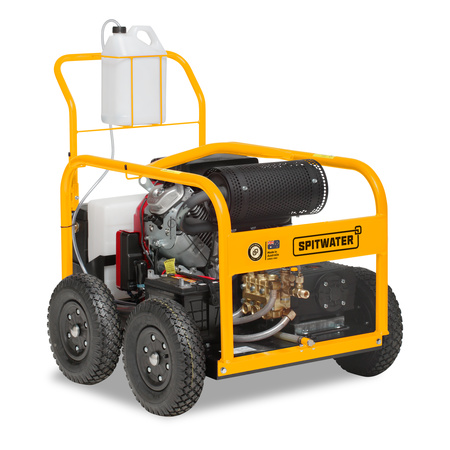

SPITWATER
HP2430AE
Cold Water, Belt Drive, 30LPM, 3480 PSI, GX630 Honda Petrol w Electric Start
From $9,995.45
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Water Cooling Tank: Protects pump seals from overheating during bypass mode.
- Honda GX630 Engine: Industrial-grade, electric start engine with a 3-year warranty.
- 'Oz-Tuff' Belt Drive: Efficient and maintenance-free, using 15% less power than a gearbox.
- Stainless Steel Gun & Dual Lance: High-quality and durable, providing extended service life.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP2430AE offers 240 Bar pressure and 30 LPM flow, perfect for industrial contract cleaning and earth-moving maintenance.
Technical Specifications
Category | Description | Value |
---|---|---|
Features | Machine Type | Industrial |
Features | Duty Cycle | Heavy |
Features | Temperature | Cold |
Features | Drive Type | Belt Drive |
Features | Nozzle Size | 80 |
Performance | Pressure (Bar) | 240 |
Performance | Pressure (MPa) | 24 |
Performance | Pressure (PSI) | 3480 |
Performance | Class | Class B |
Performance | Country of Origin | Australia |
Performance | Flow (L/Min) | 30 |
Water Inlet | Maximum Pressure (MPa) | 0.6 |
Water Inlet | Minimum Flow (L/min) | 32 |
Water Inlet | Maximum Temperature (°C) | 40 |
Motor / Engine | Motor / Engine | Petrol |
Motor / Engine | Motor / Engine Brand | Honda |
Motor / Engine | Motor / Engine Model | Honda GX630 |
Motor / Engine | Power (hp) | 20 |
Motor / Engine | Speed (rpm) | 3600 |
Motor / Engine | Fuel Capacity (L) | 11 |
Motor / Engine | Fuel Consumption (L/h) | 6 |
Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.7 |
Motor / Engine | Motor / Engine - Oil Type | 10W-30 |
Pump | Pump Type | Piston Pump |
Pump | Pump Brand | Interpump |
Pump | Pump Model | T2535 |
Pump | Pump Oil Capacity (L) | 1.2 |
Pump | Pump Oil Type | 15W-40 |
Bypass System | Valve Model | VRT3 |
Electrical | Sound Power Level (dBA) | 103 |
Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 95 |
Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 105.8 |
Dimensions & Weight | Packed Height (mm) | 930 |
Dimensions & Weight | Packed Length (mm) | 880 |
Dimensions & Weight | Packed Weight (kg) | 160 |
Dimensions & Weight | Packed Width (mm) | 770 |
Dimensions & Weight | Unpacked Height (mm) | 953 |
Dimensions & Weight | Unpacked Length (mm) | 1008 |
Dimensions & Weight | Unpacked Weight (kg) | 136 |
Dimensions & Weight | Unpacked Width (mm) | 746 |
