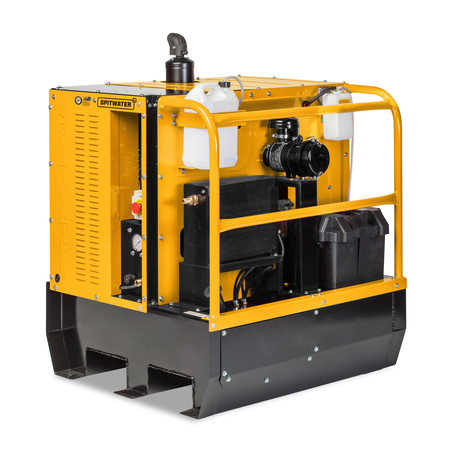

SPITWATER
HP23-350DE
Cold Water, Belt Drive, 23LPM, 5080 PSI, 23HP Kubota Diesel w Electric Start
Key Benefits
- Anodised Crankcase: Provides superior corrosion resistance and durability.
- Non-Corrosive Pump Head: Ensures longer pump life and reduced maintenance.
- Bypass Protection: Reduces potential damage to the pump during bypass mode.
- In-line Filter: Prevents debris from scoring pistons and seals, ensuring smooth operation.
- Performance Monitoring: Features for easy pump performance tracking.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP23-350DE provides 350 Bar pressure and 23 LPM flow, perfect for remote industrial cleaning and mining applications.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Belt Drive |
| Features | Nozzle Size | 45 |
| Performance | Pressure (Bar) | 350 |
| Performance | Pressure (MPa) | 35 |
| Performance | Pressure (PSI) | 5080 |
| Performance | Class | Class B |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 23 |
| Water Inlet | Maximum Pressure (MPa) | 0.6 |
| Water Inlet | Minimum Flow (L/min) | 25 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Diesel |
| Motor / Engine | Motor / Engine Brand | Kubota |
| Motor / Engine | Motor / Engine Model | Kubota D902 |
| Motor / Engine | Power (hp) | 23.5 |
| Motor / Engine | Speed (rpm) | 3570 |
| Motor / Engine | Fuel Capacity (L) | 36 |
| Motor / Engine | Fuel Consumption (L/h) | 4.56 |
| Motor / Engine | Motor / Engine - Oil Capacity (L) | 3.7 |
| Motor / Engine | Motor / Engine - Oil Type | 15W-40 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | W3523 |
| Pump | Pump Oil Capacity (L) | 1.2 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | VB350 |
| Electrical | Sound Power Level (dBA) | 102 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 94 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 101.42 |
| Dimensions & Weight | Packed Height (mm) | 1440 |
| Dimensions & Weight | Packed Length (mm) | 1130 |
| Dimensions & Weight | Packed Weight (kg) | 393 |
| Dimensions & Weight | Packed Width (mm) | 1000 |
| Dimensions & Weight | Unpacked Height (mm) | 1226 |
| Dimensions & Weight | Unpacked Length (mm) | 886 |
| Dimensions & Weight | Unpacked Weight (kg) | 384 |
| Dimensions & Weight | Unpacked Width (mm) | 1025 |
