SPITWATER

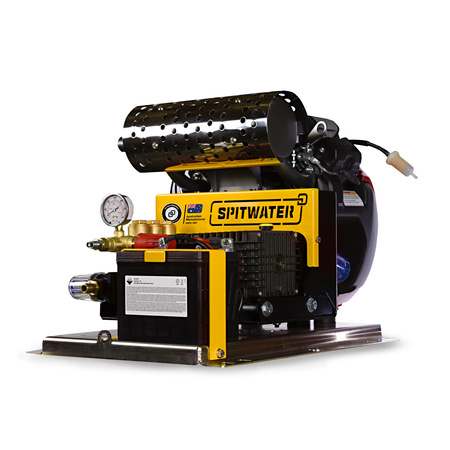

HP18-450P
Cold Water, Belt Drive, 18LPM, 6530 PSI, Skid, GX690 Honda Petrol w Electric Start
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Honda GX690 Engine: Industrial-grade electric start engine with a 3-year warranty.
- 'Oz-Tuff' Belt Drive: Efficient and reliable, maintenance-free, using 15% less power than a gearbox.
- Stainless Steel Gun & Lance: Durable and reliable for a longer service life.
- VS500 Safety Valve: Provides over-pressure protection for added safety.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP18-450P delivers 450 Bar pressure and 18 LPM flow, ideal for specialised industrial cleaning, water jetting, and large equipment maintenance.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Belt Drive |
| Features | Nozzle Size | 35 |
| Performance | Pressure (Bar) | 450 |
| Performance | Pressure (MPa) | 45 |
| Performance | Pressure (PSI) | 6530 |
| Performance | Class | Class B |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 18 |
| Water Inlet | Maximum Pressure (MPa) | 0.8 |
| Water Inlet | Minimum Flow (L/min) | 20 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Petrol |
| Motor / Engine | Motor / Engine Brand | Honda |
| Motor / Engine | Motor / Engine Model | Honda GX690 |
| Motor / Engine | Power (hp) | 24 |
| Motor / Engine | Speed (rpm) | 3570 |
| Motor / Engine | Fuel Capacity (L) | 11 |
| Motor / Engine | Fuel Consumption (L/h) | 6 |
| Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.7 |
| Motor / Engine | Motor / Engine - Oil Type | 10W-30 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | W4518 |
| Pump | Pump Oil Capacity (L) | 1.2 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | H560 |
| Electrical | Sound Power Level (dBA) | 103 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 95 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 90 |
| Dimensions & Weight | Packed Height (mm) | 860 |
| Dimensions & Weight | Packed Length (mm) | 790 |
| Dimensions & Weight | Packed Width (mm) | 660 |
| Dimensions & Weight | Unpacked Height (mm) | 530 |
| Dimensions & Weight | Unpacked Length (mm) | 823 |
| Dimensions & Weight | Unpacked Width (mm) | 508 |
