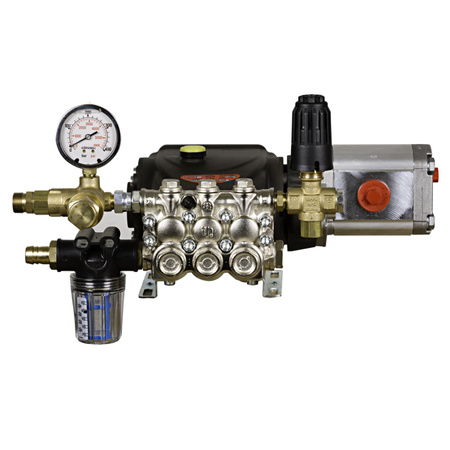

SPITWATER
HP15-250HYD
Cold Water, Hydraulic Drive, 15LPM, 3630 PSI
Key Benefits
- Compact Design: Fits into tight spaces on purpose-built trucks and machinery.
- Variable Water Flow: Adjustable flow from 15 L/min to 20 L/min, depending on hydraulic capacity, for different applications.
- Reliable Interpump Pump: Italian-made with a brass head and ceramic pistons for ultimate durability.
- Italian Hydraulic Motor: High-quality motor with case drain for easy connection and smooth operation.
- Operational Protection: Brass unloader valve, safety valve, and pressure gauge ensure safe and reliable performance.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP15-250HYD provides 250 Bar pressure and variable flow, ideal for truck and machinery integration.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Hydraulic |
| Features | Nozzle Size | 40 |
| Performance | Pressure (Bar) | 250 |
| Performance | Pressure (MPa) | 25 |
| Performance | Pressure (PSI) | 3630 |
| Performance | Certifications | CE Certified |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 15 |
| Water Inlet | Maximum Pressure (MPa) | 1.2 |
| Water Inlet | Minimum Flow (L/min) | 15 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Hydraulic |
| Motor / Engine | Motor / Engine Brand | Hypack |
| Motor / Engine | Motor / Engine Model | HYPACK 26 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | E3B2515I |
| Pump | Pump Oil Capacity (L) | 0.65 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | VB280 |
| Dimensions & Weight | Unpacked Height (mm) | 260 |
| Dimensions & Weight | Unpacked Length (mm) | 450 |
| Dimensions & Weight | Unpacked Weight (kg) | 15 |
| Dimensions & Weight | Unpacked Width (mm) | 360 |
