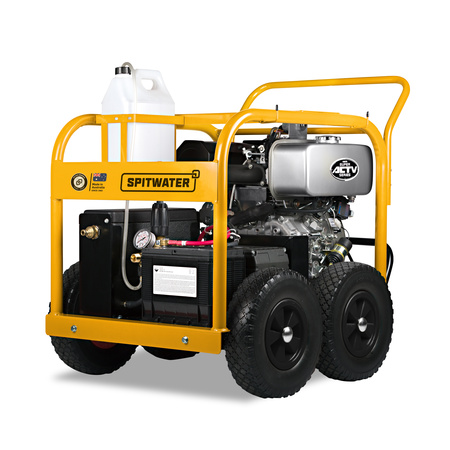

SPITWATER
HP15-210DE
Cold Water, Belt Drive, 15LPM, 3050 PSI, 9.5HP Kubota Diesel w Electric Start
From $9,500.00
Key Benefits
- Non-Corrosive Pump Head: Ensures longer pump life and reduced maintenance costs.
- Belt Drive Power Transmission: Efficient, strong, and reliable timing belt that uses less power than a gearbox.
- Increased Efficiency: 15% more power available than a gearbox with maintenance-free operation.
- Bypass Protection: Reduces potential damage to the pump during bypass mode.
- Enhanced Portability: Pneumatic wheels offer greater manoeuvrability over tough terrain.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP15-210DE delivers 210 Bar pressure and 15 LPM flow, designed for industrial-grade cleaning.
Technical Specifications
Category | Description | Value |
---|---|---|
Features | Machine Type | Industrial |
Features | Duty Cycle | Heavy |
Features | Temperature | Cold |
Features | Drive Type | Belt Drive |
Features | Nozzle Size | 45 |
Performance | Pressure (Bar) | 210 |
Performance | Pressure (MPa) | 21 |
Performance | Pressure (PSI) | 3050 |
Performance | Class | Class A |
Performance | Country of Origin | Australia |
Performance | Flow (L/Min) | 15 |
Water Inlet | Maximum Pressure (MPa) | 1 |
Water Inlet | Minimum Flow (L/min) | 17 |
Water Inlet | Maximum Temperature (°C) | 40 |
Motor / Engine | Motor / Engine | Diesel |
Motor / Engine | Motor / Engine Brand | Kubota |
Motor / Engine | Motor / Engine Model | Kubota OC95 |
Motor / Engine | Power (hp) | 9.5 |
Motor / Engine | Speed (rpm) | 3570 |
Motor / Engine | Fuel Capacity (L) | 5.5 |
Motor / Engine | Fuel Consumption (L/h) | 2.39 |
Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.5 |
Motor / Engine | Motor / Engine - Oil Type | 15W-40 |
Pump | Pump Type | Piston Pump |
Pump | Pump Brand | Interpump |
Pump | Pump Model | WS251 |
Pump | Pump Oil Capacity (L) | 1.1 |
Pump | Pump Oil Type | 15W-40 |
Bypass System | Valve Model | VRT3 |
Electrical | Sound Power Level (dBA) | 107 |
Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 99 |
Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 49.5 |
Dimensions & Weight | Packed Height (mm) | 930 |
Dimensions & Weight | Packed Length (mm) | 880 |
Dimensions & Weight | Packed Weight (kg) | 163 |
Dimensions & Weight | Packed Width (mm) | 770 |
Dimensions & Weight | Unpacked Height (mm) | 827 |
Dimensions & Weight | Unpacked Length (mm) | 875 |
Dimensions & Weight | Unpacked Weight (kg) | 140 |
Dimensions & Weight | Unpacked Width (mm) | 697 |
