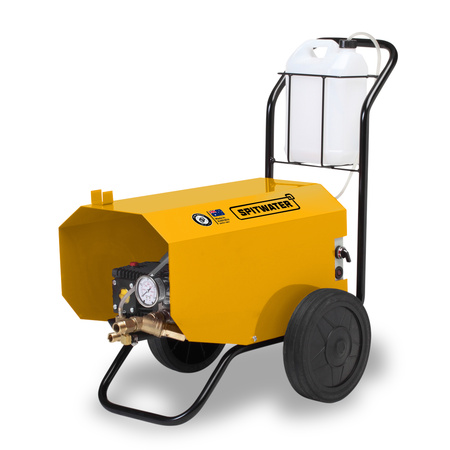

SPITWATER
HP12-110 DTS
Cold Water, Direct Drive, 12LPM, 1600 PSI, 3HP Electric, 15A, 240V, SS Cover
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- In-line Filter: Protects pistons and seals from damage.
- Delayed Total Stop: Automatically suspends operation in bypass mode to prevent overheating.
- Chem-Jet & 5L Container: Simplifies the application of cleaning chemicals.
- Stainless Steel Gun & Adjustable Lance: Durable, high-quality, and user-friendly.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP12-110 DTS delivers 110 Bar pressure, 12 LPM flow, and advanced pump protection for industrial cleaning.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Heavy |
| Features | Temperature | Cold |
| Features | Drive Type | Direct Drive |
| Features | Nozzle Size | 45 |
| Performance | Pressure (Bar) | 110 |
| Performance | Pressure (MPa) | 11 |
| Performance | Pressure (PSI) | 1600 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 12 |
| Water Inlet | Maximum Pressure (MPa) | 1 |
| Water Inlet | Minimum Flow (L/min) | 14 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Motor / Engine Brand | Soga |
| Motor / Engine | Power (hp) | 3 |
| Motor / Engine | Speed (rpm) | 1400 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | W140 |
| Pump | Pump Oil Capacity (L) | 0.4 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | SETMATIC 0 |
| Electrical | Plug (A) | 15 |
| Electrical | Phases | 1 |
| Electrical | Voltage | 230 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Rated Current (A) | 14 |
| Electrical | Connected Load (kW) | 3.1 |
| Electrical | IP Rating | IPX5 |
| Electrical | Sound Power Level (dBA) | 84 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 76 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 29.7 |
| Dimensions & Weight | Packed Height (mm) | 680 |
| Dimensions & Weight | Packed Length (mm) | 670 |
| Dimensions & Weight | Packed Weight (kg) | 57 |
| Dimensions & Weight | Packed Width (mm) | 540 |
| Dimensions & Weight | Unpacked Height (mm) | 785 |
| Dimensions & Weight | Unpacked Length (mm) | 740 |
| Dimensions & Weight | Unpacked Weight (kg) | 47 |
| Dimensions & Weight | Unpacked Width (mm) | 500 |
