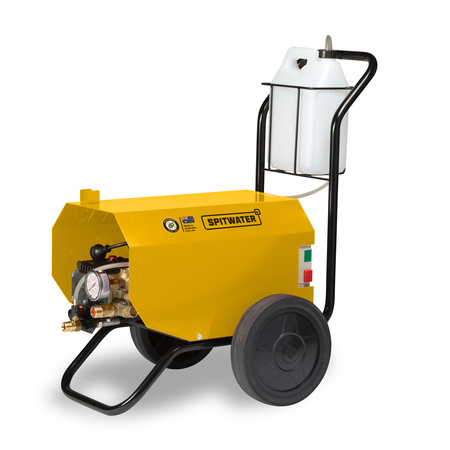

SPITWATER
HP10-090
Cold Water, Direct Drive, 10LPM, 1310 PSI, 2HP Electric, 10A, 240V
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- In-line Filter: Protects pistons and seals from damage.
- Chem-Jet & 5L Container: Simplifies application of cleaning chemicals.
- Quality Gun & Adjustable Lance: User-friendly with versatile settings.
- Australian Made: High-quality product built for reliability.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HP10-090 offers 90 Bar pressure and 10 LPM flow, perfect for small maintenance and light-duty cleaning applications.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Industrial |
| Features | Duty Cycle | Medium |
| Features | Temperature | Cold |
| Features | Drive Type | Direct Drive |
| Features | Nozzle Size | 40 |
| Performance | Pressure (Bar) | 90 |
| Performance | Pressure (MPa) | 9 |
| Performance | Pressure (PSI) | 1310 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 10 |
| Water Inlet | Maximum Pressure (MPa) | 1 |
| Water Inlet | Minimum Flow (L/min) | 12 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Electric |
| Motor / Engine | Motor / Engine Brand | Soga |
| Motor / Engine | Power (hp) | 3 |
| Motor / Engine | Speed (rpm) | 1400 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | W130 |
| Pump | Pump Oil Capacity (L) | 0.4 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | VB7 |
| Electrical | Plug (A) | 10 |
| Electrical | Phases | 1 |
| Electrical | Voltage | 230 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Rated Current (A) | 10 |
| Electrical | Connected Load (kW) | 2.2 |
| Electrical | IP Rating | IPX5 |
| Electrical | Sound Power Level (dBA) | 84 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 76 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 22.4 |
| Dimensions & Weight | Packed Height (mm) | 680 |
| Dimensions & Weight | Packed Length (mm) | 670 |
| Dimensions & Weight | Packed Weight (kg) | 57 |
| Dimensions & Weight | Packed Width (mm) | 540 |
| Dimensions & Weight | Unpacked Height (mm) | 785 |
| Dimensions & Weight | Unpacked Length (mm) | 755 |
| Dimensions & Weight | Unpacked Weight (kg) | 47 |
| Dimensions & Weight | Unpacked Width (mm) | 500 |
