SPITWATER

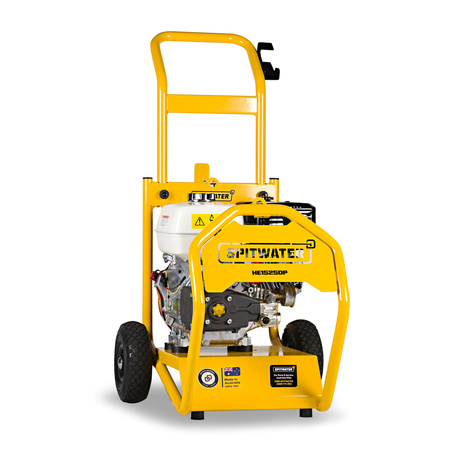

HE15-250P
Cold Water, Gearbox Drive, 15LPM, 3630 PSI, GX390 Honda Petrol
Key Benefits
- Reliable Interpump: Ensures longer pump life with reduced maintenance.
- Honda GX390 Engine: Tough industrial engine with a 3-year warranty.
- Gearbox Reduction: Operates at lower RPM for improved durability and efficiency.
- Thermal Safety Valve: Protects the pump from overheating during bypass mode.
- Ergonomic Design: Easy operation and manoeuvrability with secure accessory storage.
- Overview
- Technical Specifications
- Downloads
Overview
SPITWATER
The HE15-250P delivers 250 Bar pressure and 15 LPM flow, perfect for earth-moving and industrial cleaning tasks.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Machine Type | Commercial |
| Features | Duty Cycle | Medium |
| Features | Temperature | Cold |
| Features | Drive Type | Gearbox |
| Features | Nozzle Size | 40 |
| Performance | Pressure (Bar) | 250 |
| Performance | Pressure (MPa) | 25 |
| Performance | Pressure (PSI) | 3630 |
| Performance | Class | Class A |
| Performance | Country of Origin | Australia |
| Performance | Flow (L/Min) | 15 |
| Water Inlet | Maximum Pressure (MPa) | 0.8 |
| Water Inlet | Minimum Flow (L/min) | 17 |
| Water Inlet | Maximum Temperature (°C) | 40 |
| Motor / Engine | Motor / Engine | Petrol |
| Motor / Engine | Motor / Engine Brand | Honda |
| Motor / Engine | Motor / Engine Model | Honda GX390 |
| Motor / Engine | Power (hp) | 13 |
| Motor / Engine | Speed (rpm) | 3570 |
| Motor / Engine | Fuel Capacity (L) | 6.1 |
| Motor / Engine | Fuel Consumption (L/h) | 3.7 |
| Motor / Engine | Motor / Engine - Oil Capacity (L) | 1.1 |
| Motor / Engine | Motor / Engine - Oil Type | 10W-30 |
| Pump | Pump Type | Piston Pump |
| Pump | Pump Brand | Interpump |
| Pump | Pump Model | E3B2515 |
| Pump | Pump Oil Capacity (L) | 0.65 |
| Pump | Pump Oil Type | 15W-40 |
| Bypass System | Valve Model | VH KIT278 |
| Electrical | Sound Power Level (dBA) | 103 |
| Values Determined as Per AS/NZS 60335.2.79 | Sound Pressure Level (dBA) | 95 |
| Values Determined as Per AS/NZS 60335.2.81 | Reaction Force on Spray Gun (N) | 52.5 |
| Dimensions & Weight | Unpacked Height (mm) | 870 |
| Dimensions & Weight | Unpacked Length (mm) | 780 |
| Dimensions & Weight | Unpacked Weight (kg) | 83 |
| Dimensions & Weight | Unpacked Width (mm) | 660 |
