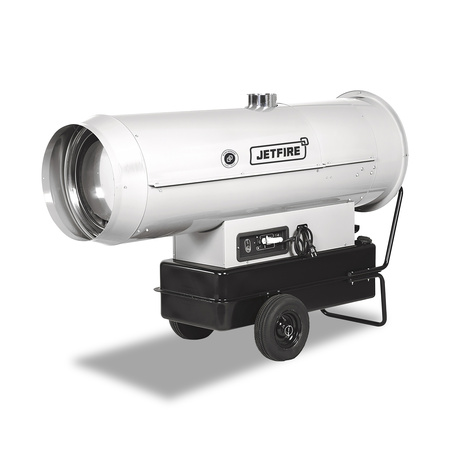

JETFIRE
IP110
Indirect Fired Space Heater, 110kW Diesel w Electric Fan, 15A, 240V
Key Benefits
- Indirect-Fired Diesel Heater: Clean, fume-free hot air for safe heating.
- High Efficiency: 117.26 kW rated output with 90% heating efficiency.
- Electric Fan-Forced Heating: Ensures superior heat distribution across large spaces.
- Geared Fuel Pump: Delivers reliable and consistent fuel flow.
- OTTICO Approved: Made to the same high-quality standards as SPITWATER.
- Overview
- Technical Specifications
- Downloads
Overview
JETFIRE
Explore the JETFIRE IP110 Diesel heater with 117.26 kW output, delivering fume-free air and superior heat distribution.
Technical Specifications
| Category | Description | Value |
|---|---|---|
| Features | Flue Diameter (mm) | 150 |
| Features | Sound Level at 1m Distance (dBA) | 76 |
| Performance | Pressure (Bar) | 12.5 |
| Performance | Certifications | CE Certified |
| Performance | Country of Origin | Italy |
| Performance | Ignition Type | Automatic |
| Performance | Run Time (Approx/h) | 12 |
| Performance | Heat Output (kW) | 105.54 |
| Performance | Heat Output (BTU/h) | 363,048 |
| Performance | Minimum Distance to Combustable Material (m) | 3 |
| Performance | Heat Efficiency (%) | 90 |
| Motor / Engine | Fuel Capacity (L) | 135 |
| Motor / Engine | Fuel Consumption (L/h) | 9.2 |
| Motor / Engine | Fuel Type | Diesel |
| Electrical | Plug (A) | 15 |
| Electrical | Phases | 1 |
| Electrical | Voltage | 230 |
| Electrical | Frequency (Hz) | 50 |
| Electrical | Connected Load (kW) | 1820 |
| Dimensions & Weight | Packed Height (mm) | 1210 |
| Dimensions & Weight | Packed Length (mm) | 1870 |
| Dimensions & Weight | Packed Weight (kg) | 174 |
| Dimensions & Weight | Packed Width (mm) | 660 |
| Dimensions & Weight | Unpacked Height (mm) | 1220 |
| Dimensions & Weight | Unpacked Length (mm) | 1918 |
| Dimensions & Weight | Unpacked Weight (kg) | 149 |
| Dimensions & Weight | Unpacked Width (mm) | 731 |
